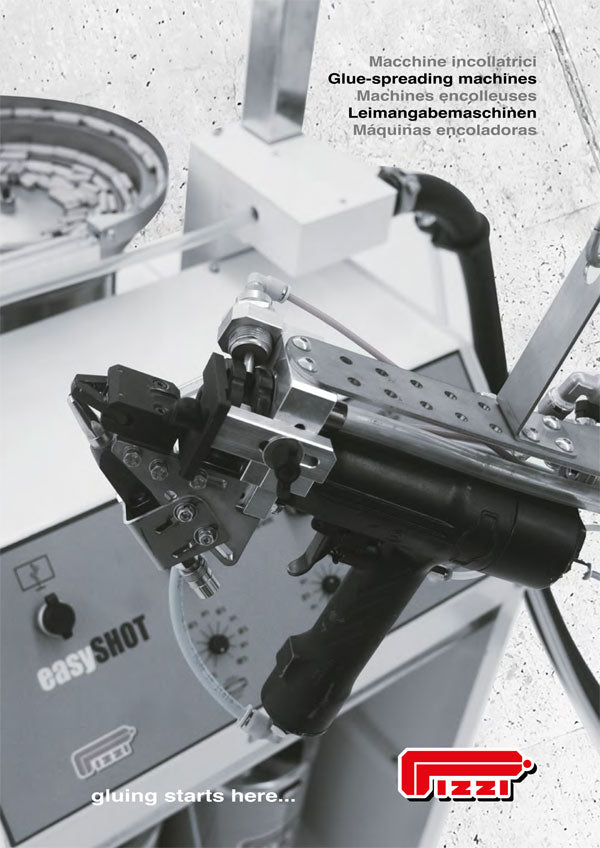

Pizzi EasyShot Dowel Insertion System
One-Step Dowel Insertion and Glue Application — Precision, Efficiency, Reliability
The Pizzi EasyShot is a stationary dowel inserting system designed for simultaneous glue application and dowel insertion, delivering unparalleled speed and accuracy in assembly operations. Ideal for cabinet shops, furniture manufacturers, and wood component producers, this all-in-one solution simplifies production by reducing operator steps and increasing output.
Perfect Dowel Assembly in a Snap — Choose EasyShot
The Pizzi EasyShot delivers precision, reliability, and high-speed dowel insertion, all in a compact, easy-to-use system. Get the job done faster and better — upgrade your assembly line today.
Features
✅ Simultaneous Glue + Dowel Insertion: One motion performs glue application and dowel placement in a single, seamless operation.
✅ Vibratory Feeder with Hose Delivery: The circular bowl feeder organizes and delivers dowels to the gun via hose, eliminating jams and ensuring consistent flow.
✅ Glue Control System: A built-in injector allows precise glue dosage adjustment.
✅ Dowel Presence Detection (PD System): Confirms each dowel has been inserted correctly — no more misfires or missed placements.
✅ PLC Control: Customize and monitor glue and dowel settings for repeatable, high-quality results.

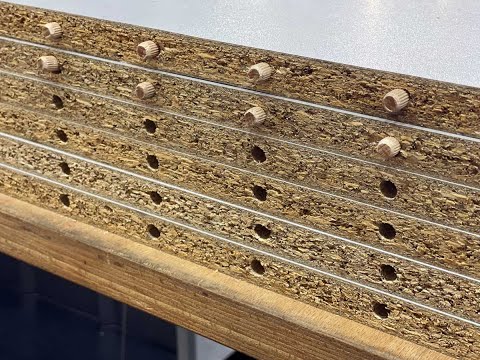

✅ Compatible with Most Wood Types: Works with furniture components, panels, solid wood, and construction elements.
✅ Meets CE Safety Regulations: Fully enclosed with safety systems for protected operation.
Advantages
✅ Dowel + Glue in 1 Second: Boosts production capacity up to 3,400 insertions/hour
✅ Error-Free Assembly: Smart sensor verification ensures every dowel is properly inserted
✅ Operator-Friendly: Reduces fatigue and streamlines workflow
✅ Footprint: Designed for easy integration into any shop layout
✅ Low Maintenance: Simple, proven mechanics keep downtime to a minimum
Benefits
🔹 Increase Output Efficiency: Up to 3400 dowels/hour allows for faster job completion.
🔹 Ensure Assembly Quality: Built-in controls eliminate missed or misaligned dowels.
🔹 Reduce Labor Cost: Simplifies workflow, making it possible for one operator to handle complex assembly.
🔹 Adapt to Any Glue/Dowel Size: System can be configured for various glue viscosities and dowel dimensions.
Technical Data
-
Production Rate: Up to 3,400 insertions/hour
-
Standard Dowel Diameter: 8 mm (6, 10, and 12 mm available)
-
Dowel Length: 25 – 80 mm
-
Glue Type: PVA adhesives (viscosity 200–400 mPa·s)
-
Power Requirements: 220V / 50Hz / Single Phase
-
Air Pressure: 6 bar (compressed dry air)
-
Power Consumption: 0.7 kW
-
Tank Capacity: 8 kg (glue) + 8 kg (water)
-
Machine Dimensions: 750 x 800 x 1500 mm (H: 2200 mm w/support)
-
Net Weight: 181 kg
Options
Based on current market demand and shop preferences, here are the most valuable options:
-
Secondary Dowel Diameter Kit: Enables fast changeovers for alternate dowel sizes (6, 10, or 12 mm).
-
300 mm Vibrating Bowl Feeder: Increased dowel capacity for higher-volume production.
-
High-Pressure Glue Pump: For thick glues (D3/D4 adhesives) or window/door construction.
-
Folding Pneumatic Gun Arm with Balancer: Enhances operator comfort and accuracy.
-
Separate Glue Gun Assembly: Use as an independent application tool when needed.
